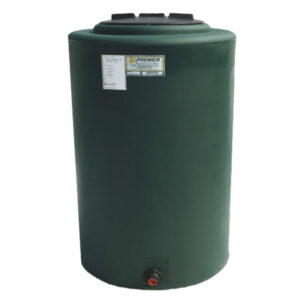

Vertical Water Tanks
For general purpose storage applications. (Rainwater, well water, household, gardening, irrigation, fire suppression)
These Tanks are a vertical cylinder in profile. They are the most common in the marketplace and are the most economical in terms of dollars per gallon.
Tanks include a 16 inch diameter, vented access lid and a 2 inch diameter female threaded pipe outlet fitting (1 inch diameter on the 500L model)
Access lids can accommodate a 15 inch Leaf Filter Basket.
Custom pipe connections can be installed in the tank wall.
Colour options are Black or Dark Green
- Description
Description
| Model No. | Volumes | Length | Width / Diam | Height | |
|---|---|---|---|---|---|
| Click For Details | Gallons | Litres | inches | inches | inches |
| VW 110 | 110 | 500 | 30 | 30 | 53 |

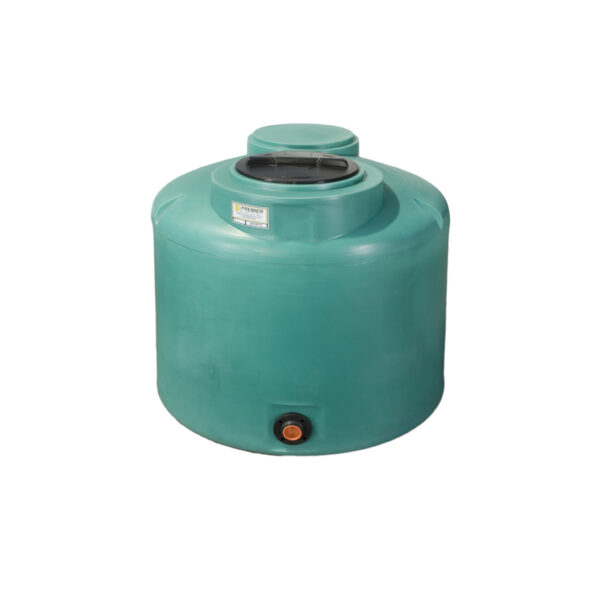

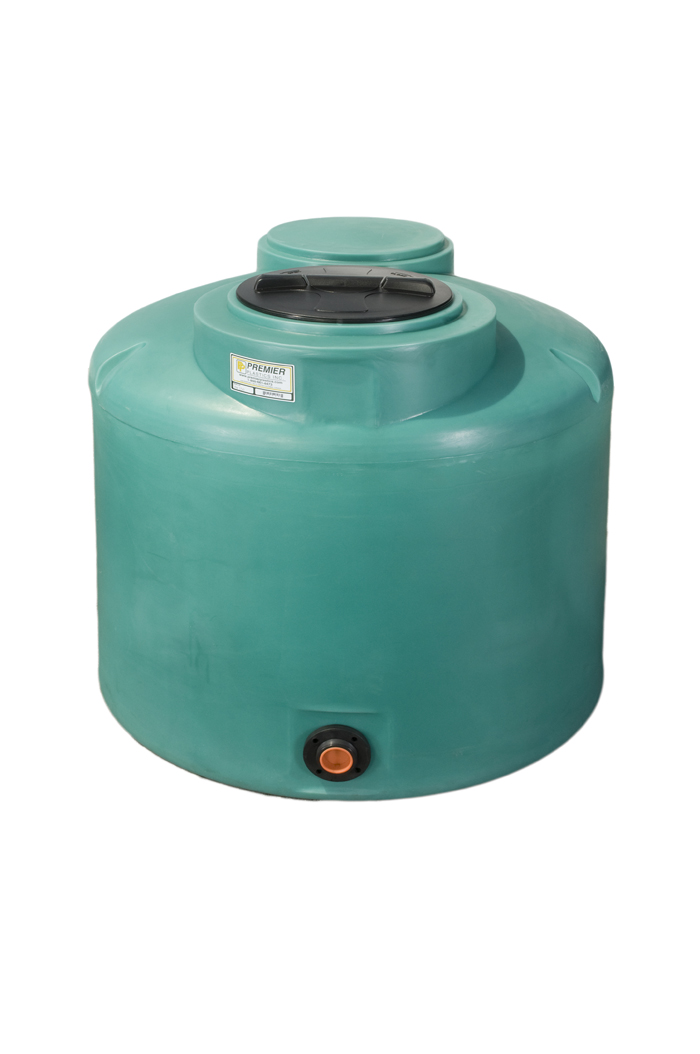

| VW 250 | 250 | 1130 | 47 | 47 | 47 |

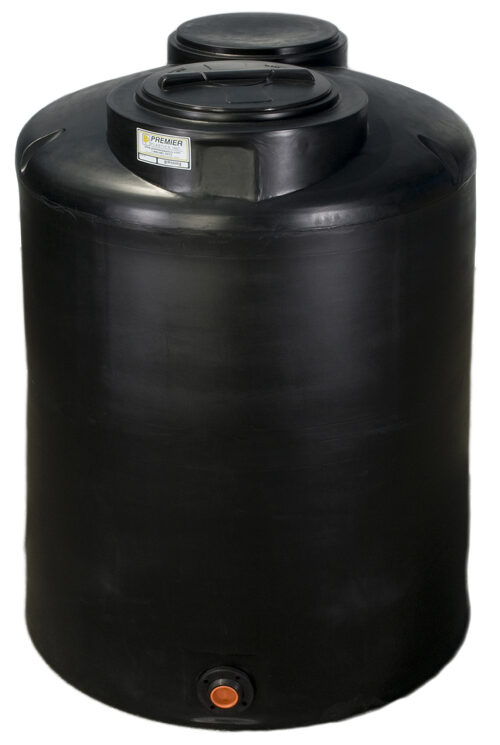

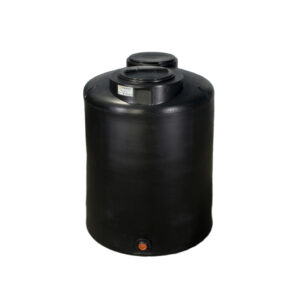

| VW 400 | 400 | 1810 | 47 | 47 | 71 |

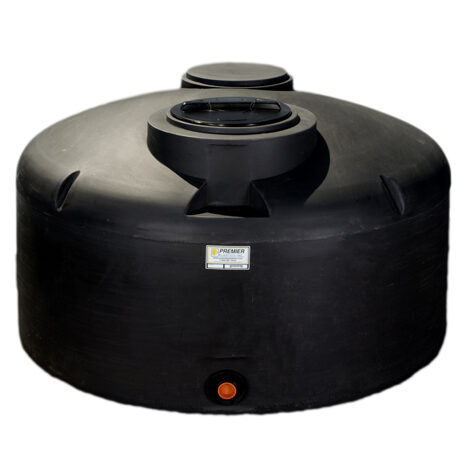

| VW 480 | 480 | 2180 | 71 | 71 | 44 |

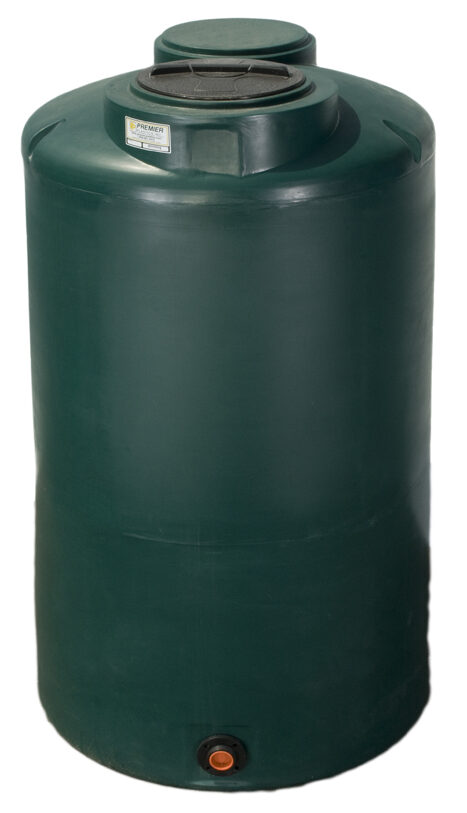

| VW 520 | 520 | 2360 | 47 | 47 | 90 |

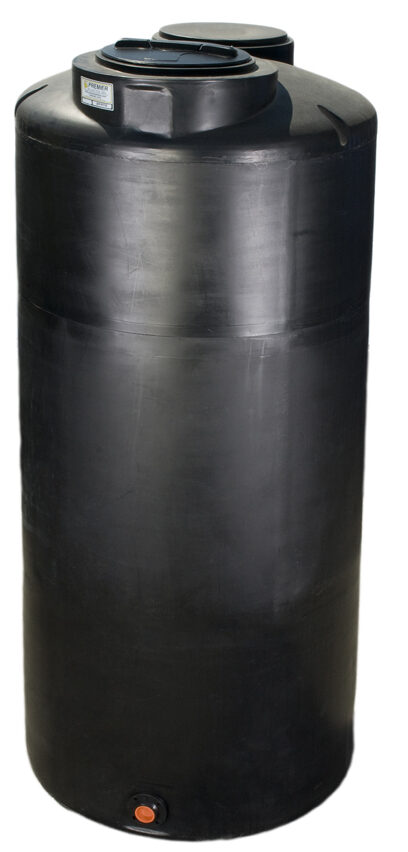

| VW 670 | 670 | 3040 | 47 | 47 | 112 |

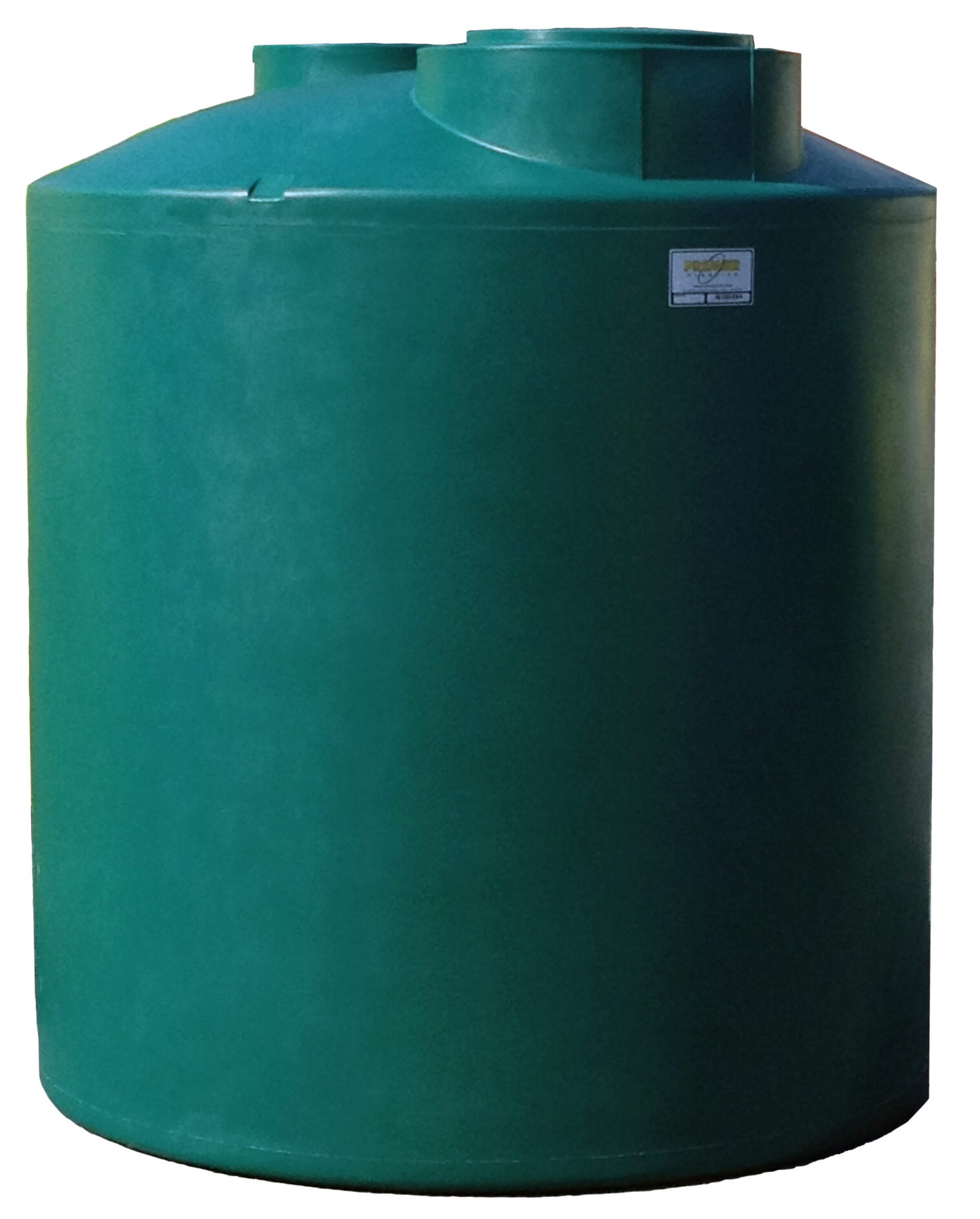

| VW 700 | 700 | 3180 | 62 | 62 | 72 |

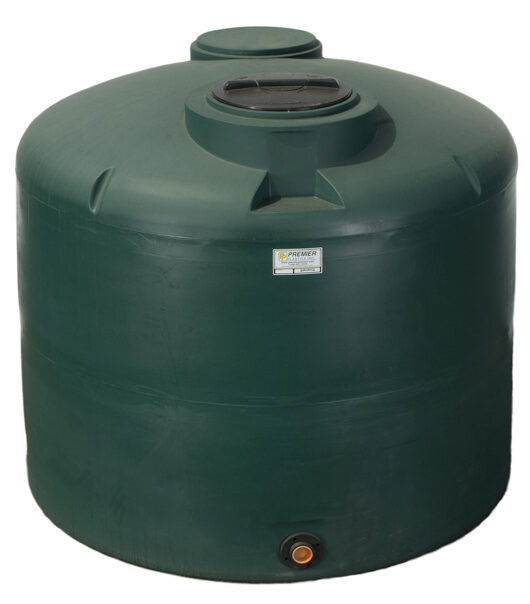

| VW 800 | 800 | 3630 | 71 | 71 | 67 |

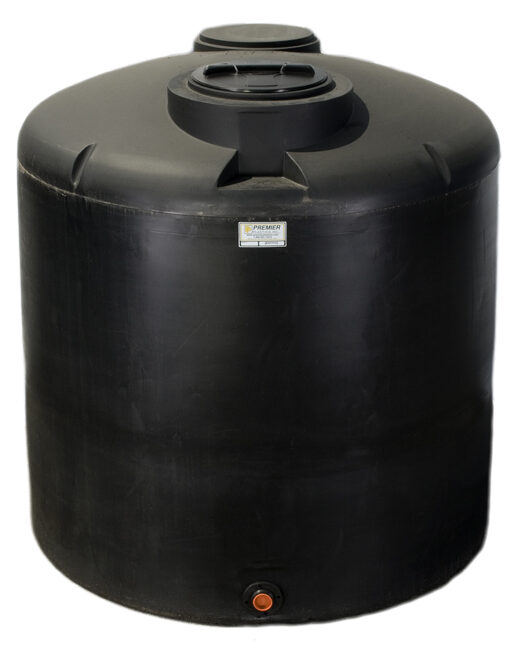

| VW 960 | 960 | 4360 | 71 | 71 | 79 |

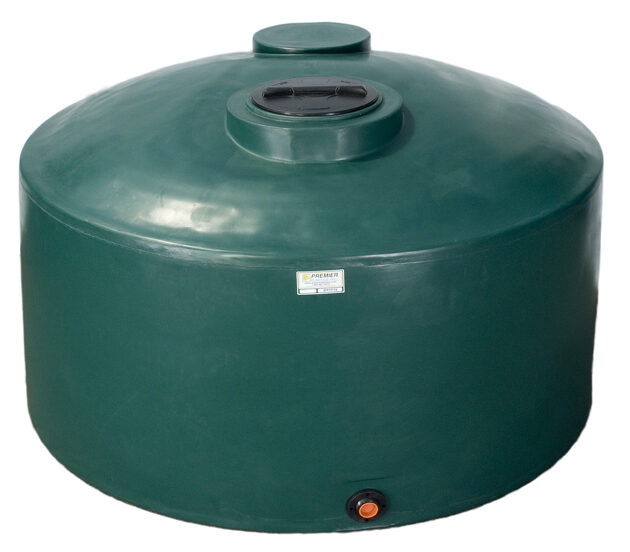

| VW 1200 | 1200 | 5450 | 91 | 91 | 63 |

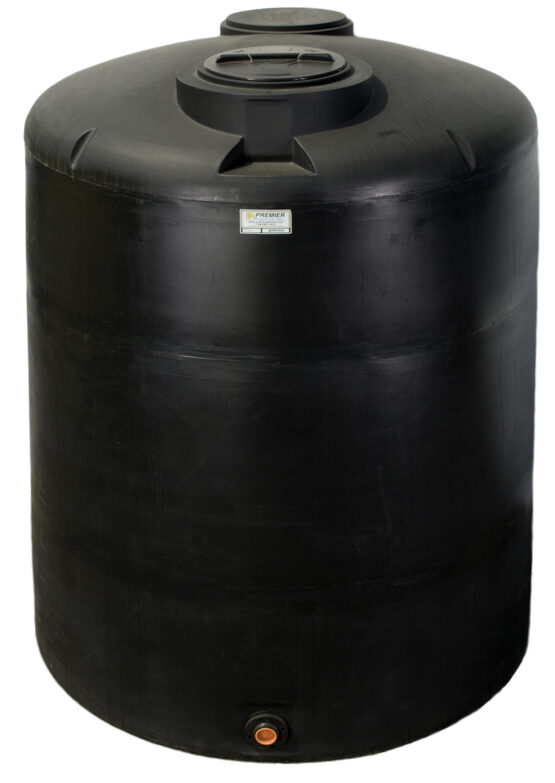

| VW 1280 | 1280 | 5810 | 71 | 71 | 103 |
| VW 1660 | 1660 | 7540 | 102 | 102 | 66 |

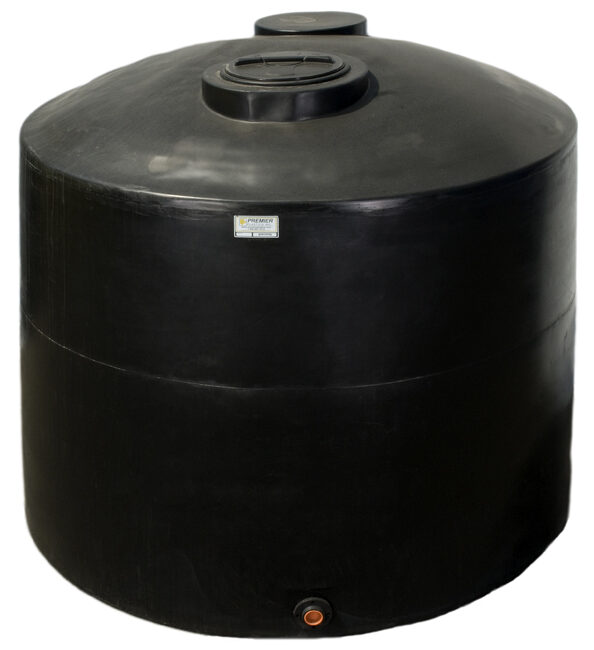

| VW 1950 | 1950 | 8860 | 91 | 91 | 92 |
| VW 2500 | 2500 | 11360 | 102 | 102 | 95 |

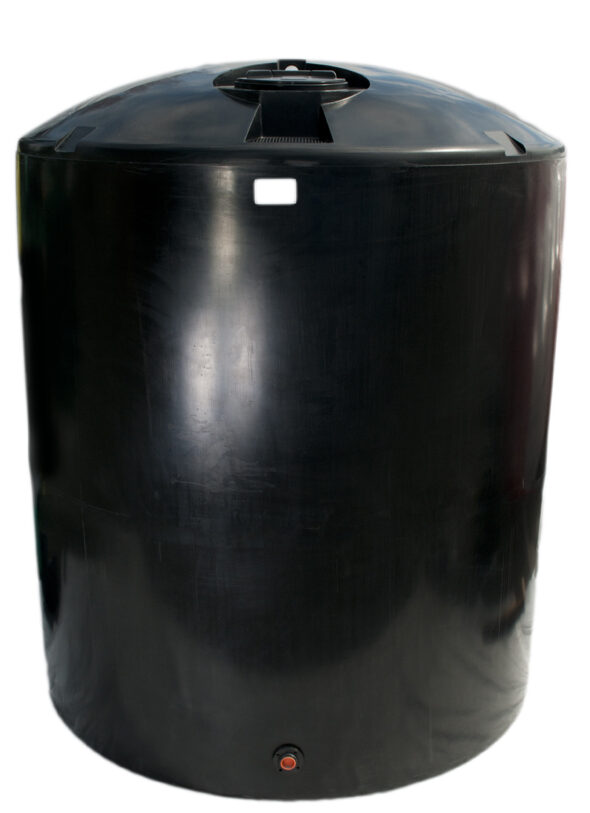

| VW 3330 | 3330 | 15130 | 102 | 102 | 123 |

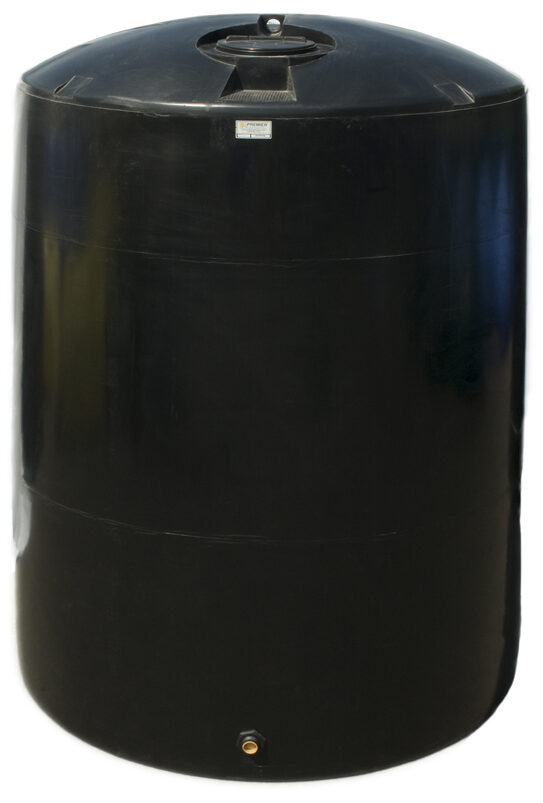

| VW 4160 | 4160 | 18910 | 102 | 102 | 152 |
Tanks include a 16” vented access lid & a
2” threaded female pipe outlet (1” – VW110)
